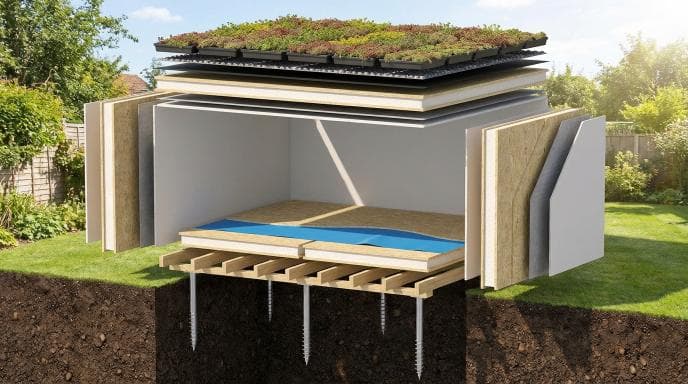

The Anatomy of a High-Spec Garden Room Build

Project Planning and Design

Effective planning reduces garden room project costs by 15-20% and ensures compliance with UK Building Regulations Part L (Conservation of Fuel and Power). Start with an initial consultation to discuss your vision for a high-spec build, whether it's a garden office, studio, or gym. Hire RIBA-registered architects to guide the process and avoid costly errors.

Use SketchUp Pro for design visualisation, creating detailed 3D models that show structural integrity, insulated panels, and bi-fold doors. This tool helps preview thermal efficiency and natural light from skylights. Architects refine these into professional renders for client approval.

The permitting process involves submitting plans to local authorities, checking planning permission, and meeting building regulations. Factor in site-specific rules like tree preservation orders. Proper planning sets a smooth path for foundation groundwork and the full construction process.

Transition to detailed site assessment and custom design for a luxury garden room that integrates with your outdoor living space. This phase ensures the build aligns with sustainability goals, like eco-friendly materials and energy efficiency.

Site Assessment

Conduct site assessment using a 1:50 scale survey and laser level (Leica Disto D2, £150) to measure gradients, soil type, and utility locations. This step lays the groundwork for a stable concrete base and drainage system. Experts recommend a thorough check to prevent issues during timber frame erection.

Follow this 7-step process for comprehensive evaluation:

• Hire a geo-technical engineer for soil testing (£300-500) to assess bearing capacity.
• Perform topographical survey with total station method for precise contours.
• Use utility detection via CAT scanner and Genny to map underground lines.
• Conduct sun path analysis with SunCalc app for optimal natural light and UPVC windows placement.
• Review flood risk assessment using Environment Agency maps.
• Obtain tree root survey from an arborist report, watching for preservation orders.
• Evaluate access evaluation for machinery and material delivery.

Use this checklist template: note soil samples, elevation changes, service depths, sunlight hours, flood zones, root radii, and vehicle widths. Common pitfalls include ignoring tree preservation orders, leading to delays in planning permission.

A detailed assessment supports the high-spec build, ensuring structural integrity and integration with landscaping for panoramic views from your garden studio.

Custom Design Process

Use Chief Architect Premier (£2,500/year) or AutoCAD LT (£400/year) to create 3D models showing 360° walkthroughs for client approval. This starts the custom design for your luxury garden room, incorporating double glazing and aluminum frames. Visuals help confirm layout for underfloor heating and power sockets.

Follow this 6-step design workflow, typically spanning 4-6 weeks with costs of £2,500-£5,000:

• Gather client brief with mood boards from Pinterest and Milan Design Week references.
• Create concept sketches hand-drawn or on iPad Pro for initial ideas.
• Build 3D modeling in Revit for structural integration and prefabricated panels.
• Select materials using RAL colour codes and Farrow & Ball paints for cladding and weatherproofing.
• Run lighting simulation with Dialux evo for LED strips and ambient lighting.
• Produce planning application drawings at 1:20 scale, including mechanical ventilation details.

RIBA-registered architects oversee material choices for thermal efficiency and soundproofing, like PIR boards and acoustic insulation. Include features such as bi-fold doors for patio connection and smart home controls.

This process ensures a multifunctional space, from wellness area to entertainment room, with bespoke joinery and high-end finishes. Budget breakdown covers software, consultations, and revisions for a durable, warranty-backed build.

Foundation and Groundworks

Proper foundations represent 15-20% of total build cost but determine 80% of long-term structural performance in a high-spec garden room build. Ground conditions vary from clay soils that swell to sandy areas prone to shifting, so always assess site stability first. Load requirements include a 1.5 kN/m² live load to support furnishings and occupancy in spaces like a garden office or gym.

Excavation methods depend on soil type, using mini-diggers for precision or hand tools for tight access. Follow BS 8004:2015, the Code of Practice for Foundations, to ensure compliance with building regulations. This standard guides depth and reinforcement to prevent settlement in your home extension.

Once groundworks complete, transition to base preparation for a solid platform. Effective drainage prevents water pooling, vital for structural integrity under insulated panels and timber frames. Poor foundations lead to cracks, so hire a structural engineer for complex sites.

Plan for radon barriers in high-risk areas and work together with overall construction process. These steps form the anatomy of a durable luxury garden room, supporting features like underfloor heating and bi-fold doors.

Base Preparation

Prepare 150mm consolidated MOT Type 1 stone base topped with 100mm C25/30 concrete slab reinforced with A142 steel mesh. This sequence ensures a level, load-bearing foundation for your garden studio. Start by marking out the area precisely.

• Mark out using profile boards and string lines to define the footprint accurately.
• Excavate to 600mm depth to remove topsoil and reach stable subgrade.
• Install 50mm perforated drainage pipe around the perimeter for initial water management.
• Lay 150mm hardcore and compact in layers with an 8 tonne plate compactor.
• Fit DPM using 2000 gauge polythene to block ground moisture.
• Place steel mesh with chairs at 1m centres, plus 12mm dia rebar at 200mm centres for extra strength.
• Pour concrete, often via pump hire at £400/day, to fill the formwork evenly.
• Cure for 7 days under polythene sheets to achieve full strength.

This process costs around £85/m² and supports heavy loads in a garden gym. Use it under timber frames for thermal efficiency. Test levels frequently to avoid costly rework.

Drainage Systems

Install French drain system with 80mm perforated pipe at 1:100 fall connected to 110mm solid uPVC land drain. This handles surface water around a 30m² garden room effectively. Primary perimeter drain runs 20m linear to capture runoff.

Design soakaways with crated system at 3m³ volume for excess water dispersion. Include ACO threshold drains at door thresholds to prevent flooding near bi-fold doors. Calculations target 1.5 litres/second runoff based on local rainfall.

• Ensure pipe gradients of 1:100 to promote flow without blockages.
• Position manholes every 10m for easy inspection and cleaning.
• Comply with BS EN 752 for sewerage systems to meet regulations.
• Add radon barrier in 1:200,000 risk areas during groundwork.

Integrate with the concrete base for comprehensive waterproofing. This setup enhances durability in outdoor living spaces like a wellness area. Consult experts for site-specific adjustments to maintain weatherproofing.

Structural Framework

Choose C24 graded timber frame (150x50mm studs at 600mm centres) or S355 steel portal frame based on 7.5m+ spans for your high-spec garden room build. Timber offers a cheaper, easier option with natural insulation properties, while steel provides stronger spans for larger open spaces. Both must comply with Eurocode 5 standards to ensure structural integrity.

Engage a structural engineer early for calculations, typically costing £800-£1,200 depending on complexity. These ensure the framework handles wind loads, snow and live loads in your garden office or studio. Reference calculations guide material choices and foundation design.

For the H3 substructure, timber suits modular construction with prefabricated panels, while steel excels in contemporary aesthetics for glass extensions. Consider thermal efficiency and integration with insulated panels or double glazing. This framework forms the backbone of your luxury garden room.

Practical advice includes site-specific wind loading assessments and connection details for durability. Pair with eco-friendly materials like SIPs for energy efficiency in your home extension or wellness area.

Timber or Steel Substructure

Timber frame: 140x45mm CLS studs, 220x45mm floor joists at 400mm centres; steel: 152x152x37kg/m UC columns with 203x133x25kg/m RSJ. These form the core of the structural framework in a high-spec garden room build. Select based on span needs, budget and aesthetic for your garden gym or reading nook.

Use Simpson Strong-Tie hangers for timber connections to boost strength in walls and roof structure. For steel, apply 30min intumescent paint for fire protection, vital in entertainment rooms. Integrate SIPs panels with 150mm PIR core for thermal efficiency and soundproofing.

Wind loading calculations at 0.5kN/m² ensure stability, especially with bi-fold doors or skylights for natural light. Timber suits DIY builds with tool requirements like saws and drills, while steel demands professional builders for welding. This choice impacts project timeline and maintenance tips for lifespan.

High-Performance Glazing

Glazing forms a large part of the facade in a high-spec garden room build, directly influencing thermal performance. High-quality units help maintain thermal efficiency while maximising natural light for spaces like garden offices or studios. Achieving U-values below 0.8W/m²K aligns with Passivhaus standards using triple glazing in a 4-16-4-16-4mm configuration, argon-filled.

These advanced glazing systems reduce heat loss in luxury garden rooms, supporting year-round use. They work together with insulated panels and timber frames for overall structural integrity. Experts recommend pairing them with aluminum frames or bi-fold doors for seamless access points.

In the construction process, proper glazing installation minimises thermal bridging at junctions. This approach enhances energy efficiency alongside features like underfloor heating and mechanical ventilation. Panoramic views through large glazed areas create multifunctional spaces for wellness or entertainment.

Maintenance involves regular checks on seals to ensure longevity, backed by warranties. Combining glazing with EPDM rubber roofing and cladding provides weatherproofing. Such details elevate the garden room into a premium home extension.

Triple-Glazed Units

Specify Saint-Gobain Planitherm One glazing: outer pane 6mm toughened, 16mm argon spacer, 4mm low-e Planitherm, 16mm argon, inner 4mm laminate. This setup delivers a G-value of 52%, light transmission of 74%, and sound insulation Rw 38dB for quiet garden studios. It suits high-spec builds needing acoustic insulation alongside thermal efficiency.

Frame options include slimline aluminum like Schüco AWS 75.SI+ at 1.4W/m²K, or timber glu-lam at 1.1W/m²K for a warmer aesthetic. Both support bi-fold doors such as Comar 7Pi, handling up to 6 panels over 7m width. NFRC 100 certification verifies performance, with 25-year warranties ensuring durability.

For garden gyms or reading nooks, these units pair with LED lighting and smart home controls. Installation follows building regulations, often requiring a structural engineer. Bifold doors enhance patio connections, blending indoor and outdoor living.

Practical advice includes aligning glazing with the pitched roof or skylights for optimal natural light. This supports sustainability through eco-friendly materials and humidity control. Bespoke joinery around frames adds contemporary aesthetics to the interior design.

Thermal Bridging Solutions

Reduce psi-values to below 0.04W/mK at junctions using Schöck Isokorb structural thermal break modules at £85 per unit. These address critical points in the garden room anatomy, following BRE 262 methodology for calculations. They contribute to overall energy savings in the build.

Key junctions include five areas: floor-wall with aeroGel insulation strip, roof-wall via Kingspan TP10 detail, window reveal using 25mm PIR plus 12.5mm phenolic, steelwork with 60mm Kingspan K12, and balustrade base featuring resin-bonded isolator. Each solution prevents heat loss in timber frame constructions. This setup integrates with PIR boards and acoustic insulation for comprehensive performance.

In practice, apply these during groundwork and concrete base pouring to maintain foundation integrity. They work well with UPVC windows or aluminum frames in glass extensions. Professional builders ensure compliance with planning permission and safety measures.

Long-term benefits include lower running costs for heating systems like underfloor options. Combine with ventilation for humidity control in kitchenettes or bar areas. Durable materials here extend the lifespan of the luxury garden room.

Insulation and Ventilation

Achieve U-values of 0.10W/m²K for walls using 150mm PIR boards (Kingspan Thermawall TW55, λ=0.022W/mK) + 50mm acoustic mineral wool. This comprehensive insulation schedule ensures thermal efficiency in a high-spec garden room build. It keeps the interior comfortable year-round.

Roof insulation features 200mm PIR between rafters plus a 50mm overlay for superior heat retention. Floors use 100mm PIR beneath screed to prevent cold bridging. Vapour control layers protect against condensation in this construction process.

Air tightness testing targets 3.0m³/hr/m² at 50Pa to meet building regulations. Part F compliance requires effective ventilation to manage indoor air quality. These steps support the structural integrity of the garden room.

A MVHR system like the Zehnder ComfoAir Q350 provides balanced airflow at 90% efficiency, installed for £3,200. Pair it with underfloor heating using 12mm PEX pipe at 200mm centres, delivering 45W/m² output. This combination enhances energy efficiency and comfort in garden offices or studios.

Wall Insulation Details

Start with 150mm PIR boards fixed to the timber frame for high thermal performance. Add 50mm RW50 acoustic mineral wool to reduce external noise, ideal for garden gyms near busy areas. Vapour control layers go on the warm side to control moisture.

Ensure joints are taped for airtightness during the insulated panels installation. This setup achieves low U-values while improving soundproofing. Experts recommend professional installation for seamless integration.

Test walls separately if possible to verify performance before cladding. Combine with UPVC windows or aluminum frames for overall thermal efficiency. Practical examples include sealing around bi-fold doors to maintain the airtight envelope.

Roof and Floor Insulation

For the pitched roof or flat roof, place 200mm PIR between rafters and overlay 50mm for complete coverage. Use breathable membranes above to allow vapour escape while preventing water ingress. This protects the roof structure in outdoor living spaces.

Floor insulation with 100mm PIR beneath screed minimises downward heat loss. Integrate it over the concrete base for a warm, insulated subfloor. Pair with decking or laminate flooring for durability.

Include roofing materials like EPDM rubber on flat roofs, ensuring insulation sits below. Skylights boost natural light without compromising the insulation layer. These choices support sustainability in luxury garden rooms.

Ventilation and Heating Systems

Install the Ze hnder ComfoAir Q350 MVHR for mechanical ventilation with heat recovery, controlling humidity effectively. Position ducting to avoid thermal bridges in the high-spec build. It complies with Part F for fresh air circulation.

Underfloor heating with PEX pipe loops provides even warmth underfoot. Connect to a low-temperature boiler for efficiency in garden studios. Layout at 200mm centres suits various room sizes.

Conduct air tightness testing post-installation to confirm targets. Integrate with smart home controls for optimal performance. This setup ensures comfort in multifunctional spaces like wellness areas or reading nooks.

Roofing and Cladding

Choose standing seam zinc (VM Zinc Quartz, 30-year warranty) or EPDM rubber roofing (Firestone, 50-year warranty) based on 4° minimum pitch. Roofing affects thermal envelope performance in garden rooms. Proper selection ensures weatherproofing and longevity in high-spec builds.

Warm roof construction uses 300mm PIR above rafters for superior insulation. This method prevents condensation and boosts thermal efficiency. Reference NHBC Chapter 7.1 for standards in pitched or flat roof designs.

The roof structure integrates with the timber frame for structural integrity. Add skylights for natural light in garden studios or gyms. This setup supports premium finishes while maintaining a tight seal.

Cladding protects walls from UK weather, pairing with insulated panels and double glazing. Ventilated systems promote airflow and durability. These choices define the anatomy of a luxury garden room.

Premium Finishes

Western Red Cedar featheredge cladding (19x125mm, 40-year lifespan) or corten steel (Nippon RPA Stegu) with Sika tropical hardwoods open joint system elevates aesthetics. These materials suit contemporary garden offices or home extensions. They offer weatherproofing and visual appeal.

Compare options like timber cladding such as cedar at £45/m² that requires maintenance, composite like Tretherm at £65/m² with 25-year warranty, or metal aluzinc at £80/m² that is recyclable. Each balances cost, upkeep, and sustainability. Select based on your garden room's exposure and style.

• Timber provides natural warmth but needs regular treatment.
• Composite resists rot without painting.
• Metal delivers modern durability and eco-friendly recycling.

Use 27mm stainless steel screws at 400mm vertical centres and 600mm horizontal for secure fixing. Include a 25mm ventilated cavity with insect mesh. BRE 262 testing ensures weather tightness in high-spec builds.

Electrical and Plumbing

Install 2.5mm² twin & earth cable on 6A radial circuits with 40A consumer unit (Hager VML24, RCBO protection). This setup ensures safe power distribution throughout the garden room. All wiring follows strict building regulations, including Part P notification for compliance.

The electrical services include 16no. sockets for devices, 6no. LED downlights at 4000K for neutral lighting, and Eve HomeKit smart controls for remote access. Cable routing uses steel trunking in the ceiling void to protect wires and maintain a tidy appearance. IP65 external sockets allow safe outdoor use in wet conditions.

Plumbing features 12mm PEX hot/cold pipes for flexible water supply and 32mm waste to 110mm stack for efficient drainage. A condensate drain supports the MVHR system, preventing moisture buildup. Heating includes a 200L unvented cylinder and provision for a 9kW EV charger.

These systems integrate seamlessly into the high-spec build, supporting uses like a garden office or gym. Professional installation ensures structural integrity and safety. Regular checks maintain long-term reliability.

Electrical Services Schedule

Core wiring starts with twin & earth cable on radial circuits, feeding the Hager VML24 consumer unit with RCBO protection. This prevents overloads and faults in the garden room. Part P notification confirms regulatory approval before energising.

Key features cover 16 power sockets placed for convenience, such as near worktops or seating areas. Six LED downlights at 4000K provide even illumination without glare. Eve HomeKit controls enable app-based adjustments for lighting and power.

External IP65 sockets handle garden tools or lighting, while steel trunking conceals cables in the ceiling void. This approach supports smart home integration and future upgrades. Experts recommend testing circuits post-installation for safety.

Plumbing and Heating Integration

12mm PEX pipes carry hot and cold water efficiently, ideal for a kitchenette sink or shower in the garden studio. Waste runs via 32mm pipes to a 110mm stack, ensuring smooth flow. A dedicated condensate drain manages MVHR output.

The 200L unvented cylinder delivers mains-pressure hot water for comfort. Provision for a 9kW EV charger future-proofs the build for electric vehicles. These elements enhance the space as a home extension or wellness area.

Integration with underfloor heating boosts thermal efficiency, paired with insulated panels. Professional plumbers align runs with the timber frame during construction. This setup minimises disruption and maximises durability.

Interior Fit-Out

Specify 18mm Baltic birch plywood carcasses with Blum hinges and Hettich drawers for bespoke joinery in the interior fit-out. This phase represents a key part of the high-spec garden room build, often accounting for a significant budget share while defining perceived value. Focus on durability, acoustics, and smart integration to create a functional space.

Durability starts with premium materials that withstand daily use in a garden office or studio. Acoustic treatments reduce external noise, essential for a peaceful home extension. Smart systems integrate lighting, heating, and security seamlessly.

Begin with insulated walls using PIR boards and acoustic insulation for thermal efficiency and soundproofing. Add mechanical ventilation for humidity control, preventing condensation in the UK climate. Incorporate UPVC windows or aluminum frames for natural light and views.

Plan electrical wiring early, including power sockets and LED lighting fixtures. Underfloor heating ties into zone controls for comfort. Bespoke storage cabinets maximise space in this luxury garden room.

High-Spec Flooring

Install 150mm concrete screed over 100mm PIR insulation with Karndean Korlok Select oak luxury vinyl (0.025W/mK, 20-year warranty) for the subfloor. This setup ensures thermal efficiency and stability in a high-spec build. Acoustic resilient bars achieve a 40dB reduction, vital for soundproofing.

Over the 18mm marine ply subfloor, choose flooring that matches the room's purpose, like a garden gym or reading nook. Options balance aesthetics, maintenance, and performance. Experts recommend waterproof surfaces for wet areas.

For wet room options, use the Schluter-Kerdi shower system with underfloor heating pipe zone controls. Pair with Zircon 120mm profiled oak skirtings for a polished edge. This combination supports multifunctional spaces like a wellness area or bar.

Frequently Asked Questions

What is 'The Anatomy of a High-Spec Garden Room Build'?

'The Anatomy of a High-Spec Garden Room Build' refers to the detailed breakdown of components and construction processes involved in creating a premium garden room. It covers everything from foundation and framing to insulation, roofing, electrics, and finishes, ensuring durability, energy efficiency, and luxury features like double-glazed windows and underfloor heating.

Why choose a high-spec garden room over a standard one in 'The Anatomy of a High-Spec Garden Room Build'?

In 'The Anatomy of a High-Spec Garden Room Build', superior materials like SIPs panels, triple glazing, and advanced ventilation systems provide better insulation, longevity, and comfort. This results in lower running costs, higher resale value, and year-round usability, making it ideal for home offices, gyms, or lounges.

What are the key foundation elements in 'The Anatomy of a High-Spec Garden Room Build'?

The foundation in 'The Anatomy of a High-Spec Garden Room Build' typically includes a reinforced concrete base or ground screws for stability. It must be level, damp-proofed, and insulated to prevent settling or moisture issues, forming the critical base for the entire structure.

How is insulation handled in 'The Anatomy of a High-Spec Garden Room Build'?

Insulation in 'The Anatomy of a High-Spec Garden Room Build' uses high-performance materials like PIR boards or structural insulated panels (SIPs) in walls, floors, and roofs. This achieves U-values below 0.15 W/m²K, ensuring minimal heat loss and a warm, quiet interior space.

What electrical and plumbing considerations are part of 'The Anatomy of a High-Spec Garden Room Build'?

'The Anatomy of a High-Spec Garden Room Build' incorporates certified electricians for safe wiring, LED lighting, power sockets, and smart controls. Plumbing for sinks or wet rooms uses frost-proof pipes, with all installations compliant to Part P regulations for safety and functionality.

How long does 'The Anatomy of a High-Spec Garden Room Build' typically take?

A full 'The Anatomy of a High-Spec Garden Room Build' usually takes 4-8 weeks, depending on size, site conditions, and custom features. This includes planning, groundwork, assembly, and finishing, with minimal disruption thanks to modular prefabrication techniques.
