Ground Screws: The London
Garden Foundation Solution
London gardens have restricted access, protected trees, and heavy clay soil. Ground screws solve all three — with 60% lower carbon emissions and installation in hours, not days.
70% faster
vs concrete slab
60% less CO2
vs concrete
TPO safe
Zero root disturbance
How Ground Screws Work

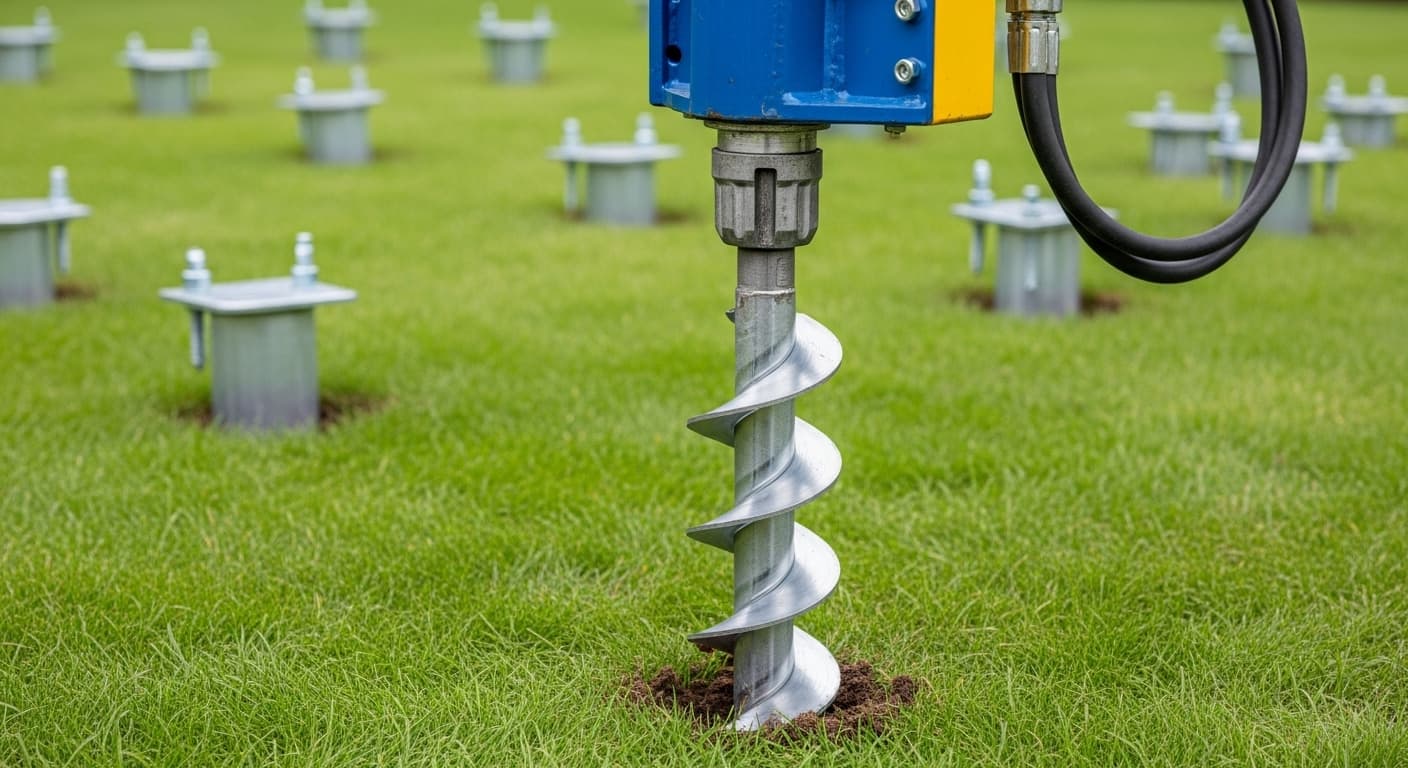

A ground screw is a galvanised steel shaft with a helical blade at its base, driven directly into the soil using a hydraulic or electric torque motor. The helix displaces soil laterally as it rotates downward — unlike a concrete foundation, which requires excavation and removal of the existing soil profile. Once driven to the target depth (typically 1,200-1,800mm in London clay), the screw provides a stable, load-bearing point that supports the garden room subframe via an adjustable head bracket.
A typical garden room (4m x 3m) requires 9-12 ground screws arranged in a grid pattern. The entire foundation can be installed in 2-4 hours by a two-person crew using a hand-held hydraulic driver — no mixer lorry, no shuttering, no curing time, and critically, no excavation.
The Three London Problems Ground Screws Solve
Restricted Access (The Ladder Test)
The majority of London properties — particularly Victorian terraces, Edwardian semis, and post-war estates — have side access of 750mm-1,200mm between the house wall and the boundary fence. A concrete mixer cannot pass through this gap. Wheelbarrow runs of wet concrete through the house are impractical and damaging. A ground screw driver, by contrast, is a hand-held tool approximately 600mm wide. It passes through a standard side gate with room to spare. This single fact makes ground screws the default foundation for most London garden room builds.
Tree Preservation Orders (TPOs)
London has one of the highest densities of protected trees of any UK city. If your garden contains or is adjacent to a TPO-protected tree, any foundation work within the Root Protection Area (RPA) — defined as an area with a radius 12 times the trunk diameter — must avoid damaging the root system. Concrete slab foundations require excavation to a minimum depth of 150mm across the entire footprint, severing every root in the zone. This will almost certainly breach TPO protections and result in enforcement action from the local authority.
Ground screws displace soil rather than excavating it. The helical blade pushes laterally through the soil profile, passing between roots without severing them. An arboricultural report will typically confirm that ground screws are an acceptable foundation method within the RPA, subject to hand-augered pilot holes and careful screw placement to avoid major structural roots. This is the only foundation method that reliably achieves TPO compliance in London gardens.
London Clay and Seasonal Heave
Much of Greater London sits on London Clay — a highly expansive soil that swells in wet conditions and shrinks in dry periods. This seasonal movement (heave) can crack and destabilise shallow concrete slabs. Ground screws are driven to a depth below the active zone (typically 1,200mm+ in London Clay), where moisture content is stable year-round. The garden room subframe sits above ground level on adjustable brackets, isolated from surface movement. The result is a foundation that is structurally more stable than a concrete slab in the soil conditions that define most London gardens.
The Carbon Case
Cement production accounts for approximately 8% of global carbon dioxide emissions. A concrete slab foundation for a typical 12m² garden room requires approximately 1.5-2.0 tonnes of ready-mix concrete. The embodied carbon of this concrete is approximately 150-200 kgCO2e.
Ground Screws (9-12 screws)
~60 kgCO2e
Galvanised steel, no excavation waste, no mixer transport
Concrete Slab (150mm depth)
~175 kgCO2e
Cement, aggregate, mixer transport, excavation disposal
Ground screws reduce foundation carbon emissions by approximately 60%. They also eliminate skip hire for excavated soil (a hidden cost and carbon source in most London builds) and remove the need for a concrete mixer lorry — which in restricted London streets often requires road occupation permits, adding both cost and community disruption.
Ground Screws vs Concrete: Full Comparison
12 metrics for London garden room foundations.
| Metric | Ground Screws | Concrete Slab | Edge |
|---|---|---|---|
| Installation time (typical 4m x 3m) | 2-4 hours | 1-2 days + 7-day cure | Screws |
| Carbon emissions | 60% lower than concrete | Baseline (cement = 8% of global CO2) | Screws |
| Root system impact | Displaces soil, zero excavation | Full excavation, root severance likely | Screws |
| TPO compliance | Compliant (no root zone disturbance) | Requires arboricultural assessment | Screws |
| Reversibility | Fully reversible (unscrew and remove) | Permanent (break-out required) | Screws |
| Access requirements | Hand-held driver through 750mm gap | Mixer access or wheelbarrow runs | Screws |
| Load-bearing capacity | 2-6 tonnes per screw | Depends on slab depth and mix | Draw |
| London clay suitability | Excellent (helix design grips clay) | Good (but heave risk in expansive clay) | Screws |
| Cost (typical 12-point grid) | £800-£1,500 | £1,200-£2,500 | Screws |
| Level adjustment | Adjustable head (+/- 50mm) | Fixed once cured | Screws |
| Wet weather installation | Unaffected | Delayed (cannot pour in heavy rain) | Screws |
| Planning impact | Not a permanent structure (aids PD case) | Permanent foundation (can weaken PD argument) | Screws |
When Concrete Is Still Required
Ground screws are not suitable for every site. A concrete foundation may be required when:
