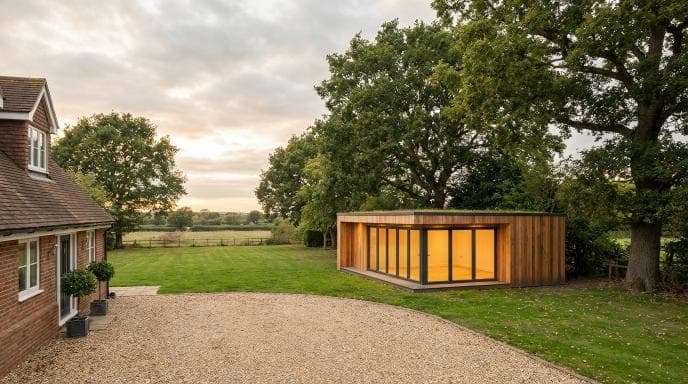

Garden Room Foundations: Ground Screws vs Concrete Slabs

While the aesthetic choices of cedar cladding and bifold doors capture the imagination, the structural integrity of a garden room depends entirely on what sits beneath it. For London gardens — characterised by heavy clay soil, restricted access, and protected tree roots — the choice between a traditional concrete slab and modern ground screws is a high-stakes decision that affects both the initial budget and the long-term performance of the building.

The Traditional Concrete Slab: Stability at a Cost

For decades, the concrete slab was the industry standard for any permanent outbuilding. It involves excavating a pit, laying a sub-base of compacted MOT Type 1 stone, installing timber shuttering, and pouring a steel-reinforced concrete mass. In London, where the soil is predominantly shrink-swell clay that expands when wet and contracts when dry, the slab must be sufficiently thick and correctly reinforced to resist this movement. An undersized slab beneath a SIPs garden room will eventually crack, causing structural misalignment of doors and windows.

The logistics of concrete in a London setting are frequently the bigger problem. A standard 4m by 3m garden room foundation requires the removal of approximately 3 to 5 tonnes of earth. In 2026, skip hire in London costs between £350 and £500 per 8-yard skip — you will typically need two for the foundation stage alone. If there is no side access for a mini-digger, every tonne of earth must be carried through the house by hand, adding days of high-cost manual labour to the quote.

Ground Screws: The Modern Alternative

Ground screws are heavy-duty galvanised steel helical piles, ranging from 800mm to 2,500mm in length, driven into the ground by a high-torque hydraulic machine until they reach stable, load-bearing strata. For London builders, they solve almost every logistical challenge associated with concrete.

• No excavation: no skips, no soil disposal, no carrying earth through the house
• Immediate loading: ground screws can be built upon the moment they are installed — unlike concrete, which requires 3 to 7 days to cure — shaving up to a week from the total build time
• Sloping sites: on sloped gardens common in areas like Hampstead or Muswell Hill, longer screws at the lower end of the slope create a perfectly level base without retaining walls

The Tree Root Factor

A concrete slab is a continuous foundation. Laying one near a tree almost certainly severs feeder roots. In 2026, planning authorities and arboricultural officers are strict about root damage to protected trees — fines for killing a TPO tree can reach tens of thousands of pounds.

Ground screws are considered a low-impact or no-dig foundation. Their small surface area allows them to be positioned between major roots without causing significant damage. This makes them the preferred — and often the only — viable choice for garden rooms situated near large oaks, limes, or planes in Conservation Areas or under Tree Preservation Orders.

Cost Comparison: 12m² London Foundation

For a standard 12m² (4m by 3m) foundation in London, the concrete slab typically costs between £4,000 and £5,800 when all costs are included: materials (£1,200 to £1,800), skip hire for two 8-yard skips (£800 to £1,000), three days of two-person labour (£1,500 to £2,000), and an access premium for manual carrying through the house (£500 to £1,000).

A ground screw installation for the same footprint typically costs between £2,600 and £3,600: materials covering 12 to 15 heavy-duty screws (£1,800 to £2,400), one day of specialist installation labour (£800 to £1,200), with zero skip hire and zero access premium as the machinery fits through a standard garden gate. In London, ground screws are almost always 30% to 50% cheaper than a concrete slab once the hidden costs of waste disposal and manual labour are factored in.

Performance in London Clay

A common concern is whether a helical screw can reliably support a 4-tonne garden room in soft clay. During a professional installation, every screw is torque-tested — the machine measures ground resistance as the screw is driven. If a 1.2m screw does not reach the required kilonewton rating, a longer screw is used until load-bearing strata is confirmed. A full torque-test report is provided on completion.

Concrete slabs are also prone to heave in clay — where the slab physically lifts as the ground expands. Ground screws, anchored deep below the active zone of the soil, are significantly less susceptible to seasonal ground movement. This prevents bifold doors and windows from sticking after heavy rainfall.

Environmental Impact

Cement production is one of the world's largest sources of CO2 emissions. A ground screw foundation uses significantly less energy to produce and install. A concrete slab also creates a large impermeable surface, contributing to rainwater runoff — a concern for London's aging drainage infrastructure. Ground screws allow the ground beneath the building to remain breathable and semi-permeable. At end of life, ground screws can be unscrewed and recycled, leaving the soil undisturbed. Removing a concrete slab requires heavy machinery and generates tonnes of landfill waste.

When a Concrete Slab Is the Right Choice

Ground screws are the better option for the vast majority of London builds, but there are circumstances where concrete remains appropriate. If a structurally sound concrete pad from an old garage already exists, over-boarding and reusing it is often more cost-effective. Heavy industrial use — such as a workshop housing large commercial machinery — benefits from the superior vibration damping of a reinforced slab. In rare cases, a planning officer or heritage consultant may specify traditional masonry foundations in a highly sensitive Conservation Area, though this is increasingly uncommon.

Foundation Decision Summary

• Installation time — Ground screws: 1 day | Concrete slab: 3 to 5 days plus curing
• Site disruption — Ground screws: minimal | Concrete slab: high (dust, mud, skips)
• Trees nearby — Ground screws: safe and recommended | Concrete slab: high risk of root damage
• Sloping site — Ground screws: excellent, easy adjustment | Concrete slab: difficult, requires retaining walls
• London access — Ground screws: ideal, fits through a standard gate | Concrete slab: difficult where manual carrying is required
• Relative cost in London — Ground screws: lower | Concrete slab: higher once hidden costs are included

Conclusion

For the modern London garden room, ground screw technology is the clear choice in the vast majority of cases. It respects London's clay soil and tree-lined gardens, handles restricted access without expensive workarounds, and saves the homeowner thousands in logistics. The result is a faster build, a cleaner garden, and a foundation that performs better over the long term than a concrete alternative. View our [full garden room range](/garden-rooms/) or read about our [sustainable building approach](/sustainability/).
